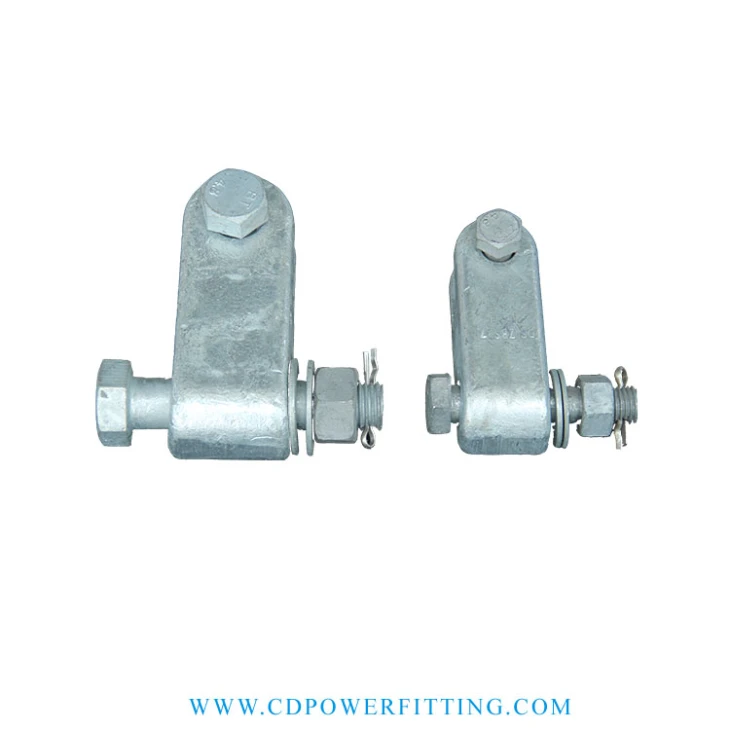

UB Type Clevis linguae

UB type clevis tongue is a connecting clevis for transmission line hardware fittings and mainly suitable for hanging suspension insulator string (composed of suspension insulator and suspension clamp) on the conductor subjected to the pole or tower;on the other hand, they are also used for hanging tension insulator string (composed of suspension insulator and tension clamp) on the tension conductor subjected to the pole or Tower {.

mitte Inquisitionis Nunc Curabitur

Description

Application:

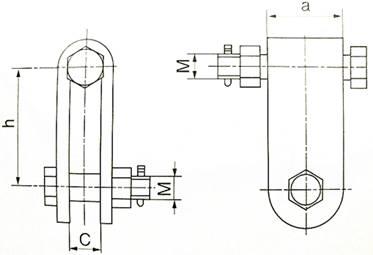

Catalogue non .	Dimensiones (mm)				Rating deficiendi onus (K.)	Pondus (kg)
Catalogue non .	C	M	H	A	Rating deficiendi onus (K.)	Pondus (kg)
UB -7	18	16	70	45	70	0.8
UB -10	20	18	80	45	100	1.1
UB -12	24	22	100	60	120	2.8
UB -16	26	24	100	60	160	2.9
UB -21	30	27	120	72	210	4.6
UB -21 est	26	24	120	60	210	2.9
UB -25	30	30	120	62	250	5.3
UB -30	38	36	130	80	300	11.0
UB -40	44	42	120	90	400	13.5
UB -16 s	22	24	90	60	160	3.5
UB -25 S1	22	27	120	70	250	4.4
UB -50 s	40	36	150	96	500	10.3
UB -9-1	20	18	65	45	90	0.6

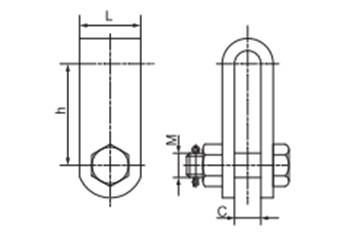

CatalogusNon .	Dimensiones (mm)				Rating deficiendi onus (K.)	Pondus (kg)
CatalogusNon .	C	M	L	M	Rating deficiendi onus (K.)	Pondus (kg)
UB -4	20	70	24	16	40	0.5
UB -7.1	20	65	40	16	70	0.7
UB -8.1	22	90	40	16	80	0.9
UB -9.1	26	75	40	22	90	1.3
{-10 T	20	70	38	18	100	0.8
{-12 T	24	100	45	22	120	2.1
{-16 T	26	100	45	24	160	2.3
